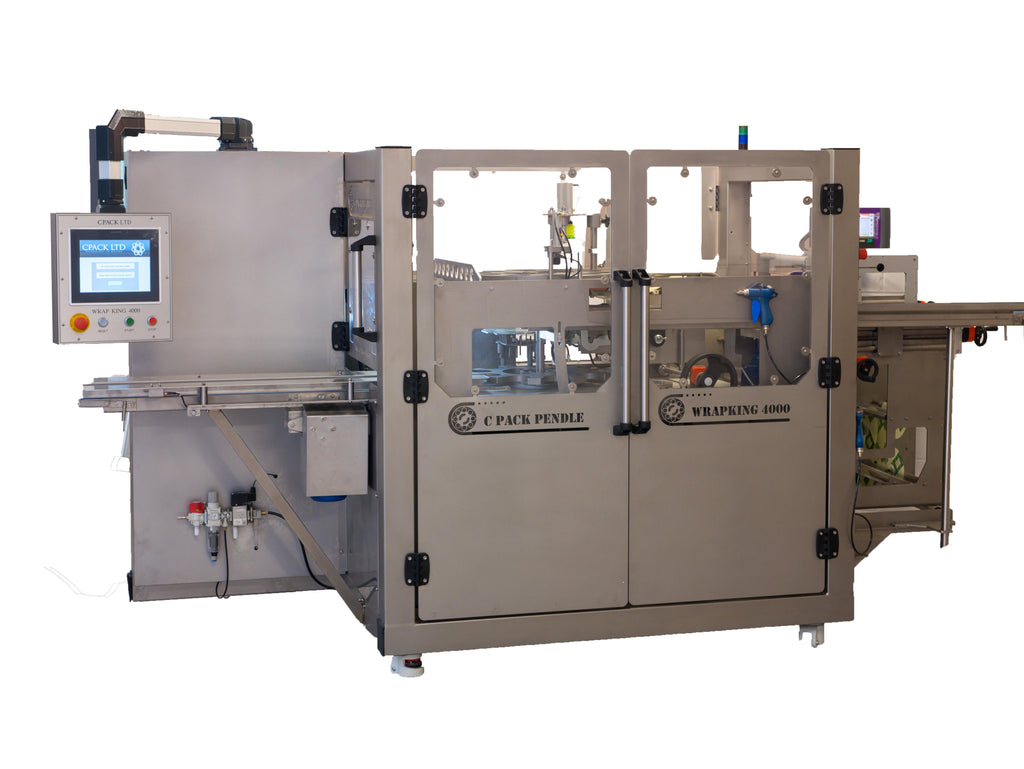

Wrap King 4000 Control Fold Machine

CPack’s latest developments in control fold and pleat wrapping technology have resulted in the WRAP KING 4000. Utilizing advanced computer control combined with servo technology, our machine provides unparalleled flexibility, adaptability and performance. Ideal for wrapping pies, burritos, cheese and tortillas at speeds of up to 70 products per minute.

Next-Generation Features

No cams, levers or mainshaft ensures minimal maintenance and cleaning. The inbuilt computer can be linked to the client’s server for up-to-the-minute production details. All parts of the machine are visible without having to open guards, meaning obstructions can be quickly and safely identified.

The WRAP KING 4000 builds upon 40 years of CPack pleat and control fold wrapping systems, introducing modern innovations and further improving output. For clients seeking versatility and the highest wrap quality possible, look no further than the WRAP KING 4000.

Wrap King 4000 biscuit wrapping demonstration

This video shows the Wrap King 4000 wrapping biscuits. Each biscuit is wrapped and fed a label. It then leaves the machine on the outfeed conveyor, where an operator picks it up.

Wrap King 4000 pie wrapping demonstration

This video explains the main features of the Wrap King 4000. It also shows pies being wrapped in British-style parchment and fed labels. The pies travel along the conveyor and drop out of the machine, ready for the next stage. An operator then shows the top and bottom labels on a wrapped pie, and what a full tray of finished pies looks like.

Wrap King 4000 pork pie wrapping demonstration

This video shows the Wrap King 4000 wrapping pork pies in parchment while the machine feeds on the labels.

FEATURES
The WRAP KING 4000 machine includes the following features:

Computer Controlled
Operating at Speeds of up to 70 Products Per Min
HMI Touchscreen Interface
Fully Guarded Enclosure with Viewing Windows
Interior LED Illumination
Changeable Product Plates
Heat Sealing Plates
Smart Automatic Conveyor In-feed and Out-feed Systems
Separate Control Enclosure Unit
Label Applicator

Power, Air and Water Requirements

Power: 400V AC, 3 Phase + Neutral + Earth, 32 Amps per Phase
Air: 80 PSI / 5 BAR
Water: None

Dimensions

Length: 3425mm
Width: 1620mm
Height: 1900mm

For more information, see our blog post on burrito and tortilla wrapping with the Wrap King 4000.
